Steel, Aluminum, Stainless, etc...
Click on links to see dimensioning information.
Decimal Equivalents, Sheet Thickness, & Metric Conversion
Pipe Standard I Beams
Expanded Metal Wide Flange Beams
Grip Strut® Structural Channel
Bar Grating Ship & Car Channel

Call or e-mail us!!!
Phone: (419)422-9632
E-mail: machineshop@saussersteel.com


Decimal Equivalents, Sheet Thickness, & Metric Conversion

  --- 32nds   --- 16ths   --- 8th" Increments

DECIMAL EQUIVALENTS

SHEETS - THICKNESS

1/32 ----- .031

1/16 ----- .062

3/32 ----- .093

1/8 ----- .125

5/32 ----- .156

3/16 ----- .187

7/32 ----- .218

1/4 -----.250

9/32 ----- .281

5/16 ----- .312

11/32 ----- .343

3/8 ----- .375

13/32 ----- .406

7/16 ----- .437

15/32 ----- .468

1/2 ----- .500

17/32 ----- .531

9/16 ----- .562

19/32 ----- .593
5/8 ----- .625

21/32 ----- .656

11/16 ----- .687

23/32 ----- .718
3/4 ----- .750

25/32 ----- .781

13/16 ----- .812

27/32 ----- .843
7/8 ----- .875

29/32 ----- .906

15/16 ----- .937

31/32 ----- .968
1 ----- 1.000
7 ga ---- .179
10 ga ---- .135
11 ga ----.120
12 ga ---- .105
14 ga ---- .075
16 ga ---- .060
18 ga ---- .048
20 ga ---- .036
22 ga ---- .030
24 ga ---- .024







1mm = .03937"

METRIC CONVERSION
MM x .03937 = Inches
INCHES x 25.4 = MM


.001" = .0254 mm
back   top

Enter Your Measurement :
Inches:
Millimeters:



Millimeters:
Inches:




back



top

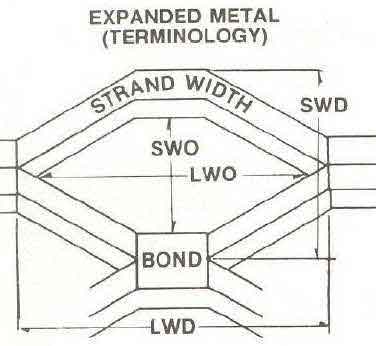

Expanded Metal


Standard


Flattened



DESIGN SIZE - Actual dimension SWD and LWD. Measured from a point to a corresponding point on the following design.
(SWO) Short Way of Opening.
(LWO) Long Way of Opening.		 (SWD) Nominal dimension Short Way of Design
(LWD) Nominal dimension Long Way of Design
STRANDS - The sides of the expanded metal design.
STRAND THICKNESS - Gauge thickness of metal expanded.
STRAND WIDTH - Amount of metal fed under dies to produce one strand
STRAND THICKNESS AND WIDTH - Can be varied to create different openings.
The width of the strand should equal or exceed the gauge of the strand thickness.
back   top

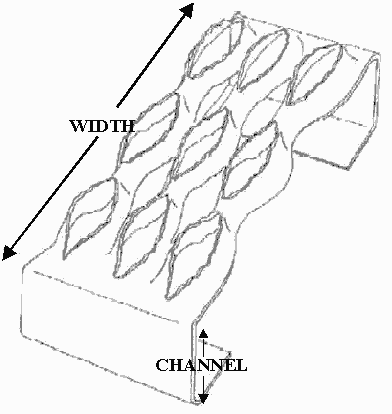

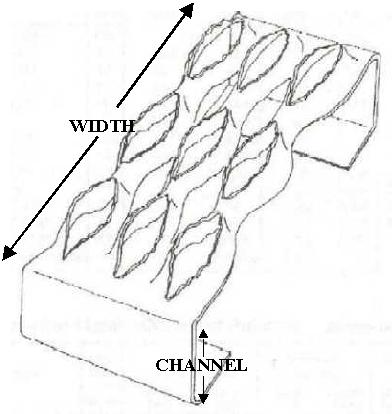

Grip Strut®
Weights per Linear Foot
Material Channel

Width

Steel
14
Gauge
1-1/2"
2"
2-1/2"

4-3/4"

7"

9-1/2"

11-3/4"

18-3/4"

24"
2.4
2.6
3.1		 3.1
3.3
3.8		 3.8
4.1
4.4		 4.4
4.7
5.0		 6.1
6.3
6.6
7.4
Steel
12
Gauge		 1-1/2"
2"
2-1/2"
3"		 3.2
3.6
4.2

 4.2
4.6
5.1
5.5		 5.1
5.5
6.0
6.4		 6.4
6.4
6.96
7.1		 8.5
8.9
9.2
9.6
10.4
10.75
11.1

Grip Strut® - Safety Grating
Galvanized Steel
back   top

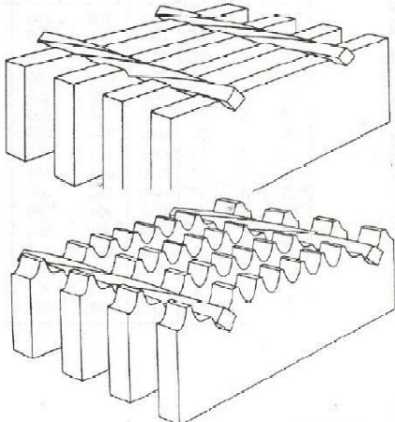

Bar Grating

STANDARD STEEL BAR GRATING

SERRATED STEEL BAR GRATING

Top
View

Standard Mesh

Close Mesh

19-W-4

19-W-2

15-W-4

15-W-2

Bearing Bars
C to C

1-3/16"

1-3/16"

15/16"

15/16"

Cross Bars
C to C

4"

2"

4"

2"

Specify for:

General Duty Applications

Smaller Openings

Heavier Loads Smaller Openings

Heaviest Loads Smallest Openings

Weight in lbs. per sq. ft.
Bearing
Bars		 Cross Bars Type
19-W-4		 Type
19-W-2		 Type
15-W-4		 Type
15-W-2

3/4 x 1/8

1/4

 3.99 4.63 4.95 5.59

3/4 x 3/16

1/4

 5.67 6.31 7.11 7.75

1 x 1/8

1/4

 5.15 5.79 6.44 7.08

1 x 3/16

1/4

 7.35 7.99 9.27 9.91

1-1/4 x 1/8

1/4

 6.20 6.84 7.79 8.43

1-1/4 x 3/16

1/4

 9.03 9.67 11.43 12.07

1-1/2 x 1/8

1/4

 7.35 7.99 9.27 9.91

1-1/2 x 3/16

5/16

 10.94 11.80 13.82 14.68

1-3/4 x 5/16

5/16

 12.62 13.48 15.98 16.84

2 x 3/16

5/16

 14.30 15.16 18.14 19.00

2-1/4 x 3/16

5/16

 15.87 16.74 20.16 21.03

2-1/2 x 3/16

5/16

 17.55 18.42 22.32 23.19
back   top

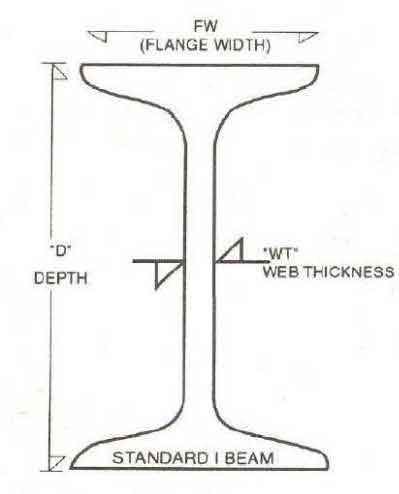

Standard I Beams

 Let us know the following information:
  • FW - Flange width
  • D - depth
  • WT - Web thickness
back   top

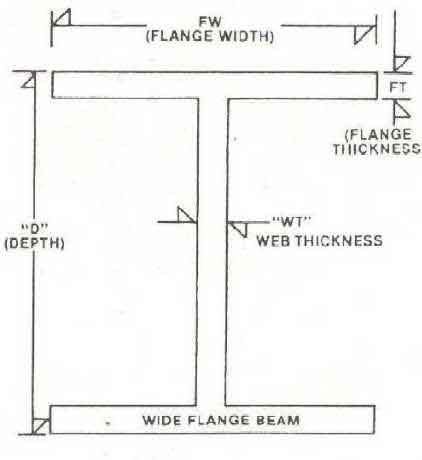

Wide Flange Beams



Let us know the following information:

  • FW - Flange width
  • FT - Flange thickness
  • D - depth
  • WT - Web thickness
back   top

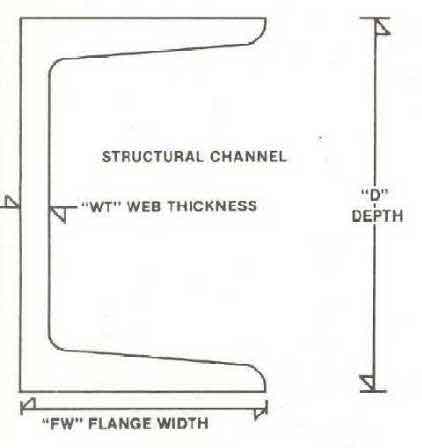

Structural Channel



Let us know the following information:

  • FW - Flange width
  • D - depth
  • WT - Web thickness
back   top

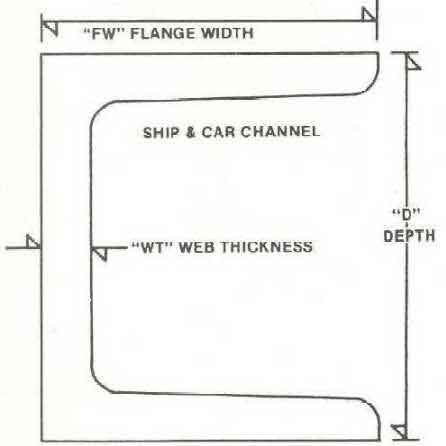

Ship & Car Channel



Let us know the following information:

  • FW - Flange width
  • D - depth
  • WT - Web thickness
back   top
